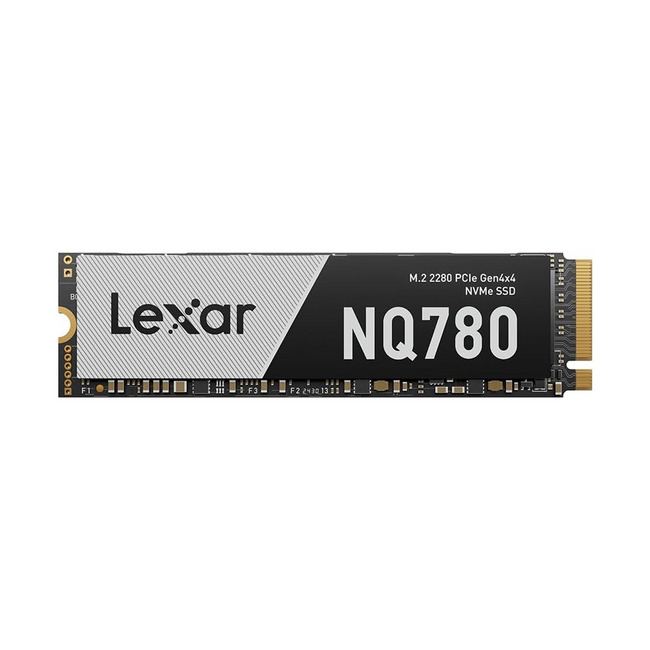

PCIe 4.0 Storage

The Lexar NQ780 is a 1TB M.2 2280 NVMe solid-state drive for compatible laptops and desktop computers. Its PCIe 4.0 x4 interface provides faster system start-up, application loading and file transfers than older storage interfaces.

1TB Performance

This capacity is rated for sequential read speeds of up to 6000MB/s and sequential write speeds of up to 2500MB/s. Performance figures are based on Lexar’s internal testing and may vary with the host system, workload and available drive capacity.

Responsive, Sustained Operation

An eight-channel Gen 4 controller supports sustained performance. Host Memory Buffer and SLC cache technologies help reduce latency and accelerate frequently performed storage operations.

Laptop-Friendly Design

The single-sided M.2 design measures only 2.45mm thick, making it suitable for compatible space-constrained laptops. Intelligent Power Control adjusts power consumption according to the workload.

Drive Management

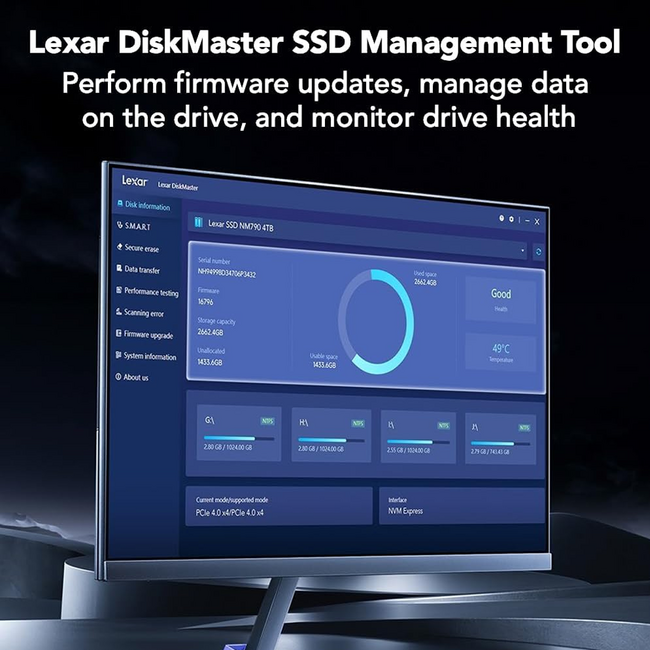

Lexar DiskMaster software supports firmware updates, drive-health monitoring and secure data erasure. The drive is rated for 600TBW endurance and is covered by a five-year limited warranty.

Product Specifications & Identifiers

• Brand: Lexar
• Product series: NQ780
• Manufacturer part number: LNQ780X001T-RNNNG
• UPC: 843367137008
• Product type: Internal NVMe solid-state drive
• Capacity: 1TB
• Form factor: M.2 2280
• Interface: PCIe Gen 4 x4
• Sequential read speed: Up to 6000MB/s
• Sequential write speed: Up to 2500MB/s
• Cache technologies: Host Memory Buffer and SLC cache
• Controller: Eight-channel Gen 4 controller
• Physical design: Single-sided
• Endurance: 600TBW
• MTBF: 1,500,000 hours
• Shock resistance: 1500G for 0.5ms
• Vibration resistance: 10–2000Hz, 1.5mm, 20G
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Dimensions: 80 × 22 × 2.45mm
• Weight: 6g
• Management software: Lexar DiskMaster
