Versatile Intel Platform

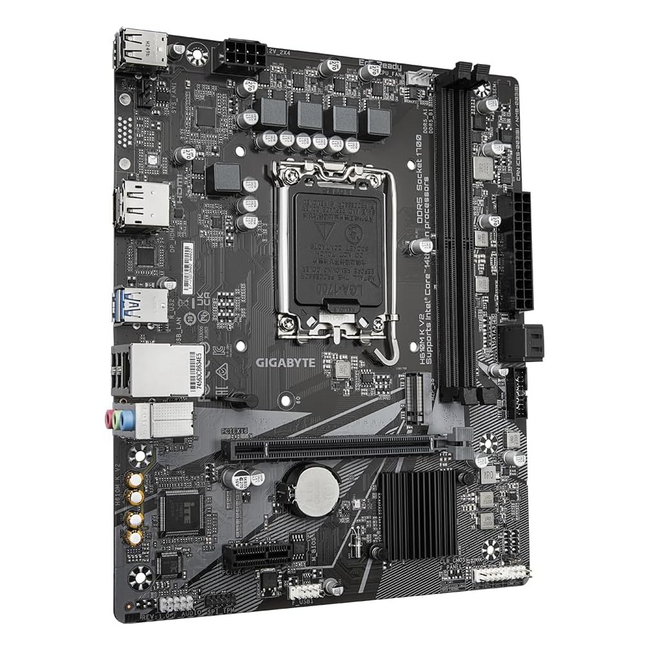

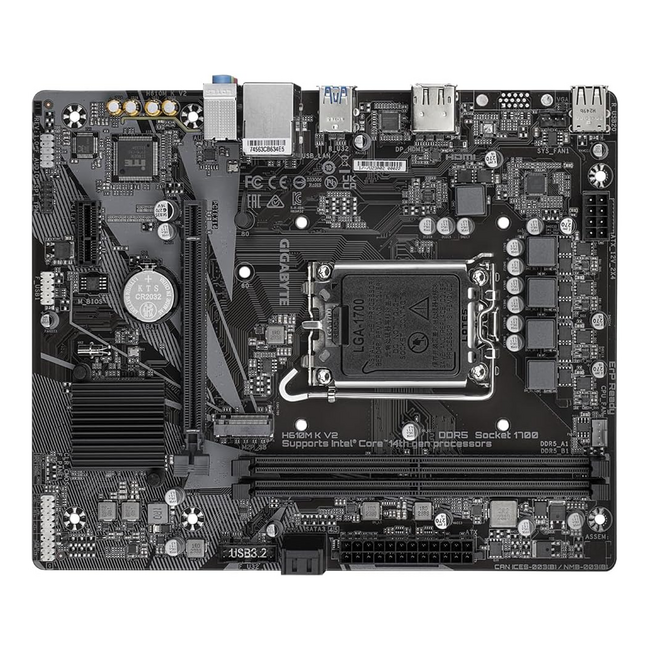

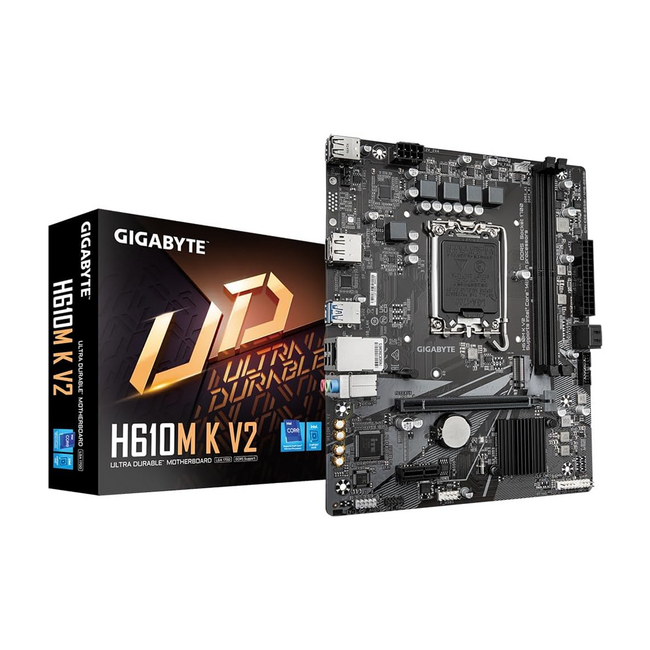

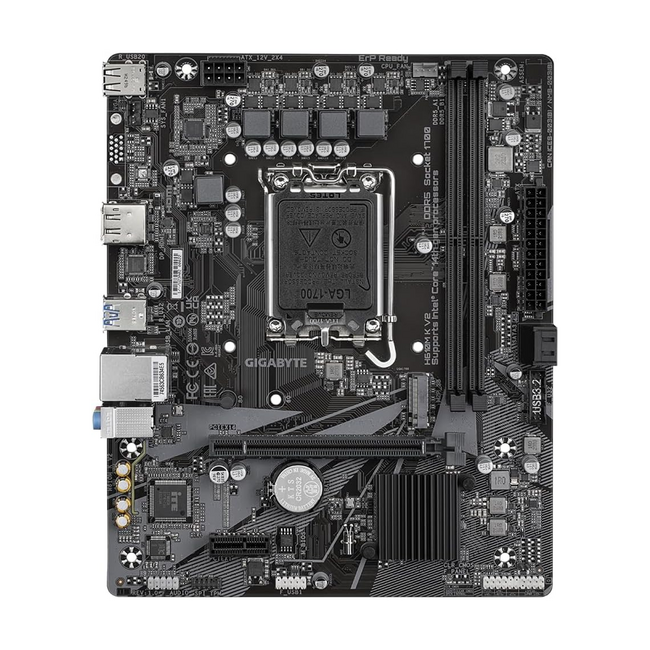

The GIGABYTE H610M K V2 is a compact Micro ATX motherboard built around the Intel H610 Express chipset. Its LGA1700 socket supports 14th, 13th and 12th Generation Intel Core processors, along with compatible Pentium Gold and Celeron models. GIGABYTE product specifications

DDR5 Memory

Two dual-channel DDR5 DIMM slots accommodate up to 128 GB of system memory. Supported speeds depend on the installed processor and memory configuration, with XMP memory-module support available.

Expansion and Storage

A PCIe 4.0 x16 slot supports a compatible graphics or expansion card, while a PCIe 3.0 x1 slot provides additional connectivity. Storage options include one PCIe 3.0 x4/x2 M.2 connector for type 2280 or 2260 SSDs and two SATA 6 Gb/s connectors.

Display and Connectivity

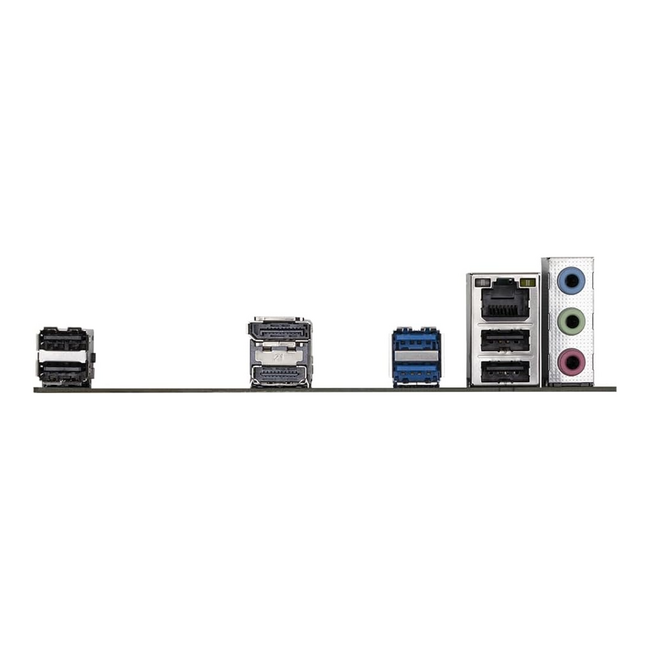

HDMI 2.1 and DisplayPort 1.2 outputs support compatible processor-integrated graphics. The rear panel also provides Gigabit Ethernet, two USB 3.2 Gen 1 ports, four USB 2.0/1.1 ports and three audio jacks. Internal headers support two additional USB 3.2 Gen 1 ports and two USB 2.0/1.1 ports.

Cooling and Audio

Smart Fan 6 provides temperature monitoring, fan-speed control and Fan Stop functionality with compatible cooling hardware. The Realtek HD Audio solution supports 2, 4, 5.1 and 7.1-channel configurations.

Product Specifications & Identifiers

• Brand: GIGABYTE
• Model: H610M K V2
• Revision: 1.0
• Part number: 9MH61MK52-00-G10
• Chipset: Intel H610 Express
• CPU socket: LGA1700
• CPU compatibility: 14th, 13th and 12th Generation Intel Core; Pentium Gold; Celeron
• Memory: 2 x DDR5 DIMM, dual-channel
• Maximum memory: 128 GB
• Expansion slots: 1 x PCIe 4.0 x16; 1 x PCIe 3.0 x1
• Storage: 1 x PCIe 3.0 x4/x2 M.2; 2 x SATA 6 Gb/s
• Display outputs: 1 x HDMI 2.1; 1 x DisplayPort 1.2
• Networking: Realtek Gigabit Ethernet
• Audio: Realtek HD Audio, up to 7.1 channels
• USB: 4 x USB 3.2 Gen 1; 6 x USB 2.0/1.1
• Operating-system support: Windows 11 64-bit; Windows 10 64-bit
• Form factor: Micro ATX
• Dimensions: 22.6 × 18.5 cm
