Extend your enterprise IT network core over massive physical expanses and eliminate costly ground trenching runs with the Ubiquiti UniFi Device Bridge Pro. This elite long-range communications module operates on a dedicated, low-interference 5 GHz wireless frequency pipeline, utilizing a high-gain 19 dBi internal directional antenna array to deliver a blazing-fast maximum data transfer velocity of 867 Mbps.Engineered to easily link remote physical infrastructure back to your master terminal network, this high-performance unit supports robust point-to-point (PtP) links over vast clear spaces exceeding 5 kilometers (3.1 miles) with absolute transmission stability.

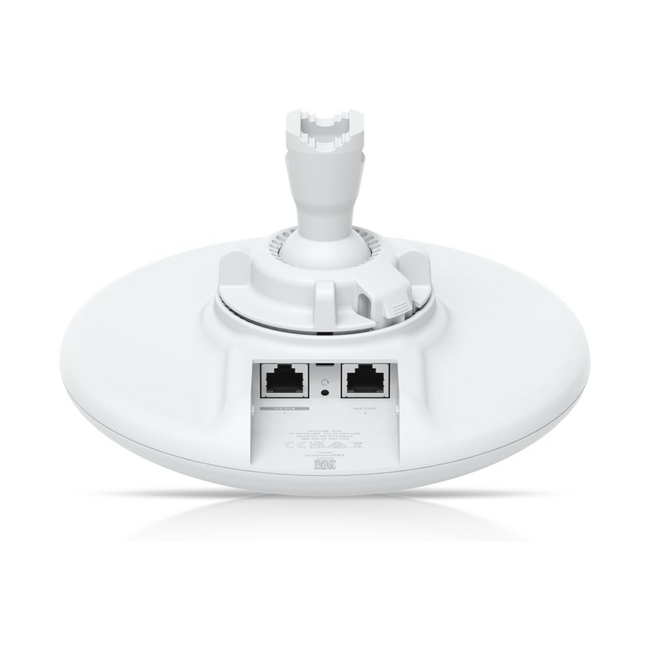

Built to withstand harsh environments, the unit features a rugged, UV-stabilized polycarbonate chassis with an exceptional IPX6 weatherproofing rating, protecting delicate internal circuits from heavy rain, sub-zero winters, and blazing summer sun.The smart physical interface includes two Gigabit Ethernet RJ45 ports that support versatile local power delivery setups; when connected to a standard 802.3at PoE+ source, the bridge enables an integrated passive PoE passthrough channel on the secondary port to power downstream equipment, such as an IP surveillance camera or an auxiliary access point, without running separate electrical lines. For administrative flexibility, it features proprietary UniFi WiFi Auto-Link technology to effortlessly connect with existing local networks and is fully managed within the centralized UniFi Network controller dashboard for comprehensive traffic control and remote device logging.

Key Features & Benefits:

• Elite 5 GHz Wireless Bridging Engine: Establishes heavy-duty, long-distance data pathways over 5 km, perfectly suited for remote outposts, gates, and campus extensions.

• Pro-Grade Integrated PoE Passthrough: Automatically routes power to downstream devices via the secondary GbE port, cutting out secondary electrical installations.

• High-Gain 19 dBi Directional Core: Concentrates wireless radio energy into a focused beam to ensure optimal signal integrity against open-air interferences.

• Centralized UniFi Cloud Control: Empowers IT managers to instantly adjust channel widths, upgrade remote firmwares, and inspect traffic flows from a single dashboard.

• Rugged IPX6 Industrial Weatherproofing: Heavy-duty outdoor chassis resists water intrusion and UV decay to guarantee stable multi-year exterior operations.

• UniFi WiFi Auto-Link Sync: Simplifies deployment by enabling direct, seamless wireless uplinks to nearby UniFi access points without complex custom configurations.

Product Specifications & Identifiers
