Gateway and Wi-Fi in One

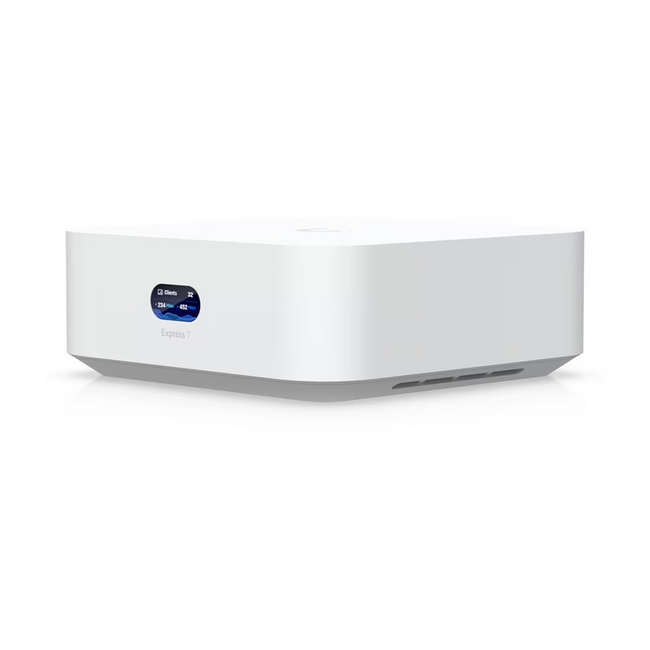

The Ubiquiti UniFi Express 7 (UX7) combines a UniFi cloud gateway and tri-band Wi-Fi 7 access point in a compact desktop design. Its integrated 2.4GHz, 5GHz and 6GHz radios provide six spatial streams and an estimated coverage area of up to 160m² (1,750ft²).

Network Performance

A 10GbE WAN connection and 2.5GbE LAN port provide high-speed wired connectivity. The gateway delivers up to 2.3Gbps IDS/IPS throughput and supports firewalling, traffic identification, content filtering, ad blocking and network segmentation.

UniFi Management

The UX7 runs the UniFi Network application and can manage more than 30 UniFi devices with over 300 simultaneous users. Additional compatible UniFi access points can be added for mesh expansion and broader coverage.

Wireless Connectivity

Wi-Fi 7 features include Multi-Link Operation and channel widths up to 320MHz. Maximum wireless data rates are 5.7Gbps on 6GHz, 4.3Gbps on 5GHz and 688Mbps on 2.4GHz.

Power and Design

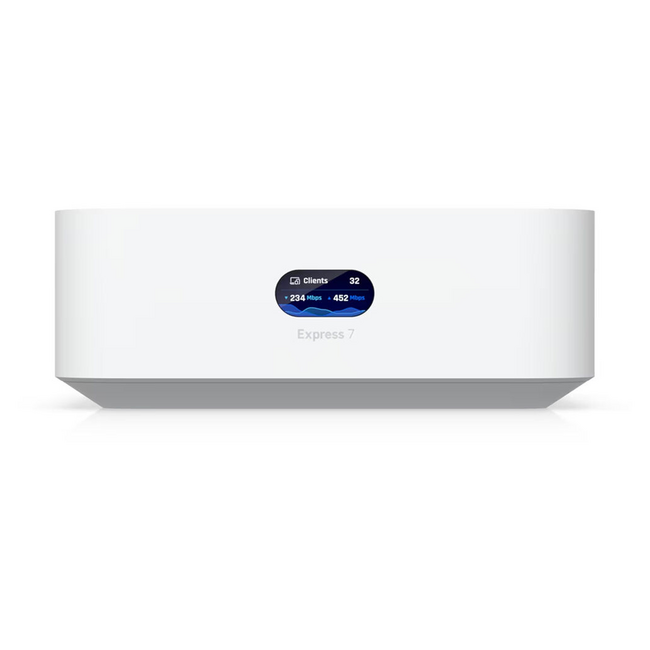

The gateway is powered through USB-C using the included 5V/5A power adapter. Its compact polycarbonate enclosure includes a 0.96-inch status display for convenient system monitoring.

Product Specifications & Identifiers

• Brand: Ubiquiti
• Product line: UniFi
• Product name: UniFi Express 7
• Model: UX7
• Product type: Wi-Fi-integrated cloud gateway and access point
• Wi-Fi standard: Wi-Fi 7; IEEE 802.11a/b/g/n/ac/ax/be
• Frequency bands: 2.4GHz, 5GHz and 6GHz
• Spatial streams: 6 total; 2x2 MIMO per band
• Maximum wireless data rates: 688Mbps at 2.4GHz; 4.3Gbps at 5GHz; 5.7Gbps at 6GHz
• Maximum channel width: 320MHz
• Estimated coverage: 160m² (1,750ft²)
• Managed UniFi devices: 30+
• Simultaneous users: 300+
• IDS/IPS throughput: 2.3Gbps

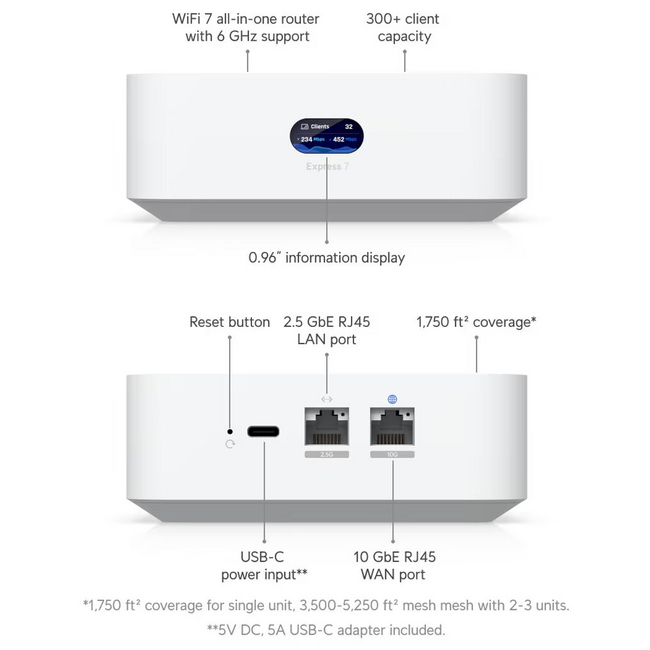

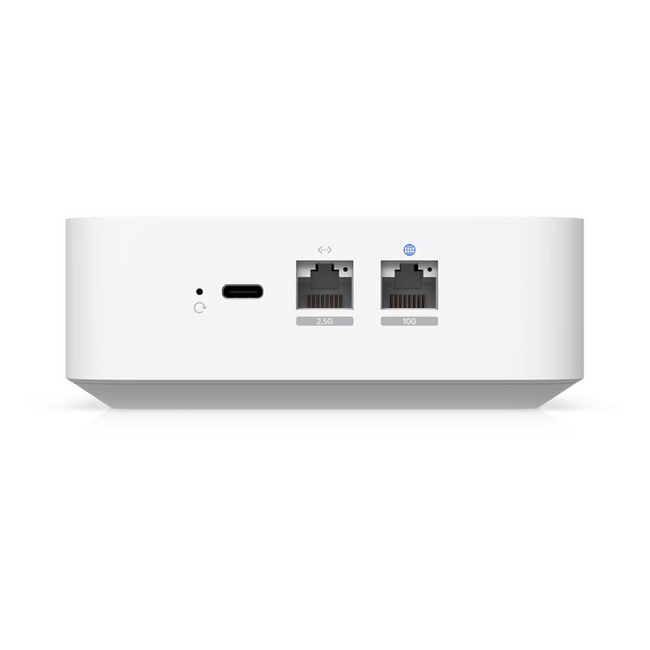

• WAN: 1 × 10GbE RJ45
• LAN: 1 × 2.5GbE RJ45
• Processor: Quad-core ARM Cortex-A53 at 1.5GHz
• Memory: 3GB
• Display: 0.96-inch status display
• Power method: USB-C, 5V DC/5A

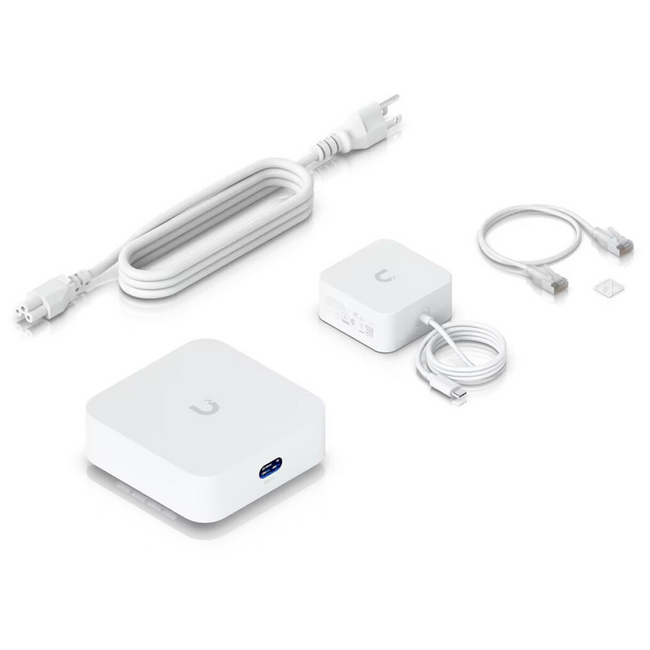

• Power adapter: Included
• Maximum power consumption: 22W

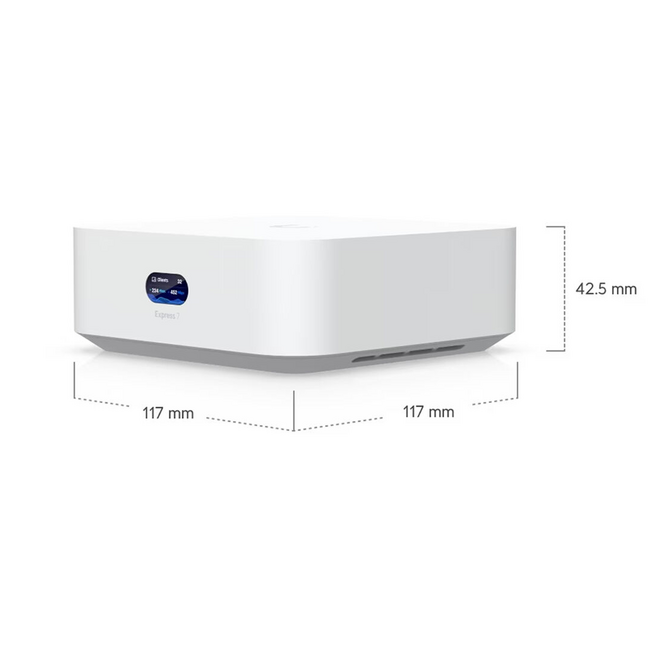

• Dimensions: 117 × 117 × 42.5mm
• Weight: 443g
• Enclosure material: Polycarbonate
• Operating temperature: -10°C to 40°C
• Required application: UniFi Network 9.0.108 or later
