PoE++ Power Without a PoE Switch

The Ubiquiti U-PoE++ adapter supplies power and a Gigabit network connection to compatible UniFi PoE++ devices. It is useful when a network switch does not provide PoE++ or when its available PoE budget needs to be preserved.

Power Delivery

The adapter delivers up to 60W through four-pair PoE++, with a 48V DC, 1.25A output. Its universal 100–240V AC input supports deployment across compatible electrical systems.

Integrated Protection

Surge, peak-pulse and overcurrent protection help protect connected network equipment. Shielded RJ45 sockets and a grounded AC power cable provide suitable connections for data input and PoE++ output.

Simple Installation

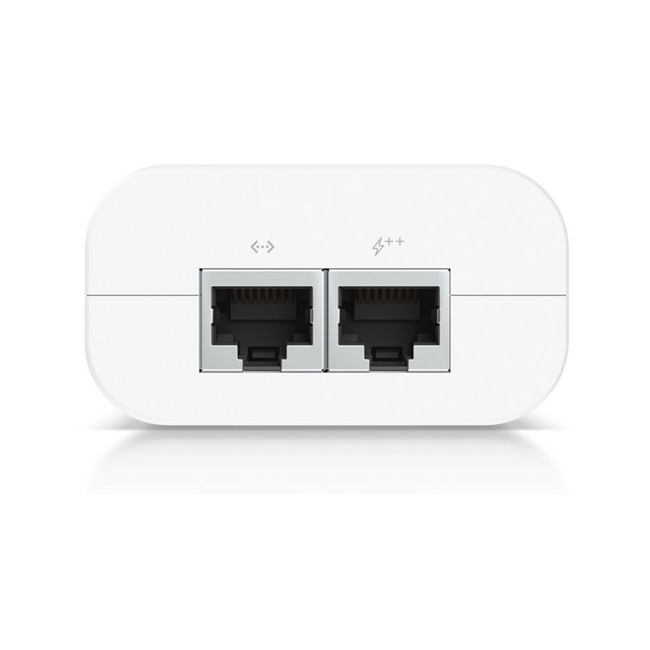

Connect the non-PoE network source to the Data In port and the powered device to the PoE output. An LED indicator provides convenient operating-status monitoring.

Product Specifications & Identifiers

• Brand: Ubiquiti
• Product line: UniFi
• Product name: PoE++ Adapter (60W)
• Model: U-PoE++
• Product type: Gigabit PoE++ injector
• Maximum PoE output: 60W
• Output voltage: 48V DC at 1.25A
• Network speed: Gigabit Ethernet
• Network connections: RJ45 data input and RJ45 PoE++ output
• Power delivery: Four-pair powering
• Positive pins: 1, 2, 4 and 5
• Negative pins: 3, 6, 7 and 8
• AC input: 100–240V AC, 50/60Hz
• AC connector: IEC-320 C6
• Surge protection: Differential and common mode
• Maximum surge discharge: 1500A
• Peak pulse current: 36A
• Efficiency: 85% or greater
• Status indicator: LED
• Power cable: Included
• Dimensions: 106 × 63 × 34mm
• Weight: 210g
• Operating temperature: 0°C to 40°C
• Storage temperature: -30°C to 70°C
• Operating humidity: 10–95% noncondensing
