Fixed-Wireless Connectivity

The Ubiquiti LiteAP AC LAP-120 is a 5GHz airMAX AC sector access point designed for outdoor fixed-wireless broadband deployments. It supports point-to-multipoint networks and long-range point-to-point links rather than conventional UniFi client Wi-Fi service.

Wireless Performance

An integrated 16dBi antenna provides 120-degree sector coverage. Ubiquiti rates the LAP-120 for up to 450+Mbps of real TCP/IP throughput, with selectable channel widths and automatic or manual transmit-power control.

Network Management

The airOS 8 interface provides device statistics, RF diagnostics, channel-selection tools, traffic shaping, routing, bridging, SNMP and SSH support.

Outdoor Installation

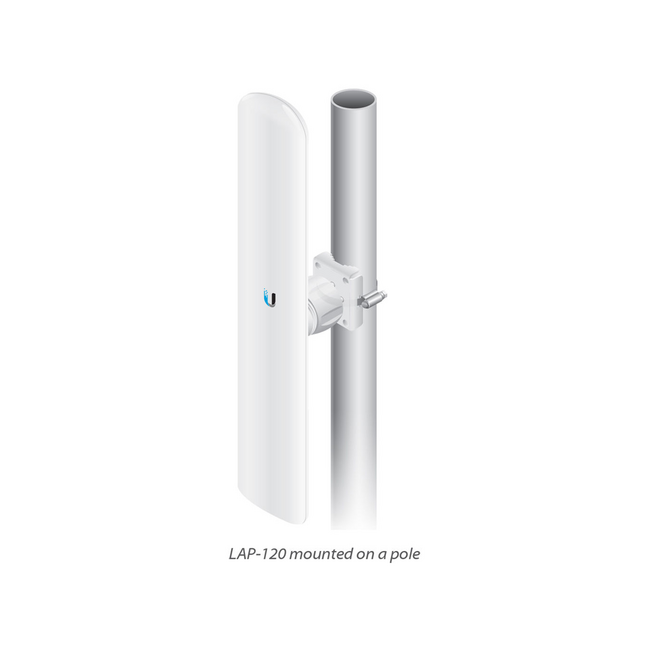

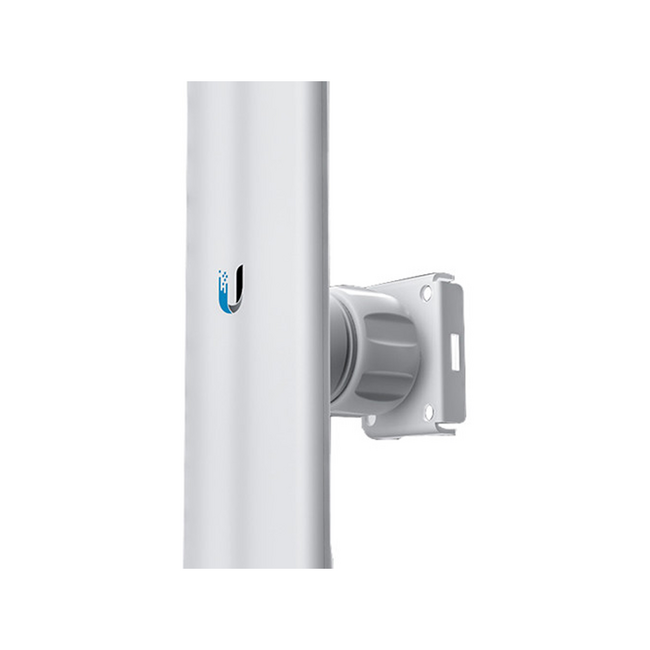

The lightweight unit includes an adjustable ball-joint pole mount. It can withstand winds of up to 200km/h and operates in temperatures from -40°C to 70°C.

Power and Connectivity

A single Gigabit Ethernet port carries data and 24V passive PoE power. The required 24V, 0.5A Gigabit PoE adapter is included.

Product Specifications & Identifiers

• Brand: Ubiquiti
• Product line: airMAX LiteAP AC
• Model: LAP-120
• Product type: Outdoor 5GHz sector access point
• Wireless technology: airMAX AC / Wi-Fi 5 class
• Maximum TCP/IP throughput: 450+Mbps
• Frequency range: 5150–5875MHz worldwide
• Antenna gain: 16dBi
• Sector coverage: 120°
• Maximum transmit power: 25dBm
• Network interface: 1 × 10/100/1000 Ethernet port
• Power method: 24V passive PoE, pairs 4/5 positive and 7/8 return
• Supported voltage range: 20–27V DC
• Power supply: 24V, 0.5A Gigabit PoE adapter included
• Maximum power consumption: 8W
• Processor: Atheros MIPS 74Kc, 533MHz
• Memory: 64MB

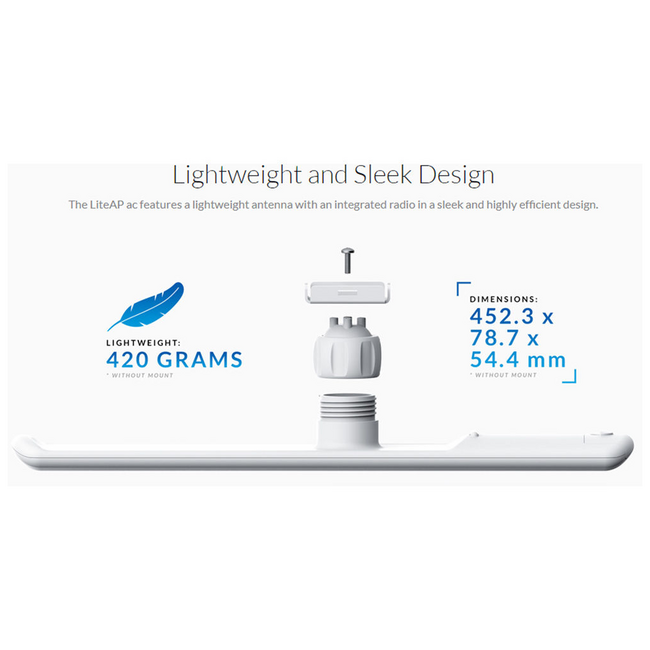

• Dimensions: 452.3 × 78.7 × 54.4mm
• Weight: 420g
• Wind survivability: 200km/h
• Operating temperature: -40°C to 70°C
• Operating humidity: 5–95% noncondensing
• Included mounting hardware: Ball-joint mount, metal strap and two set screws
• Included power accessories: Gigabit PoE adapter, adapter mounting bracket and power cord
