Versatile Intel Platform

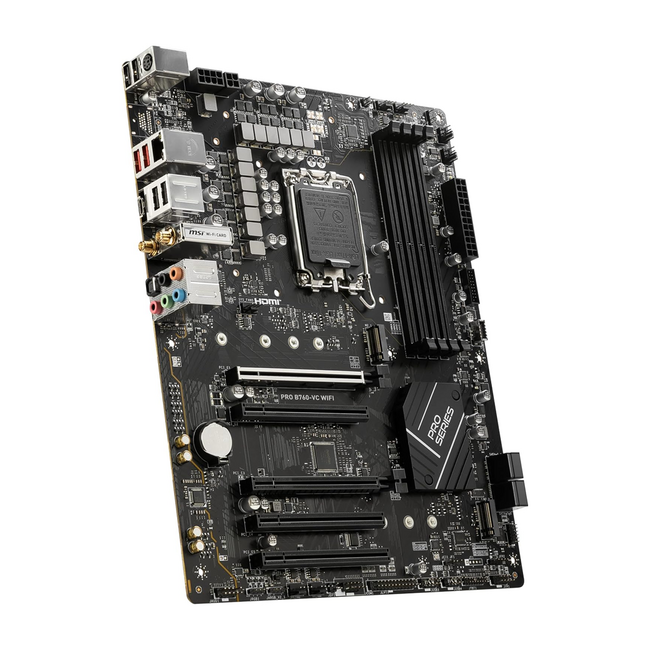

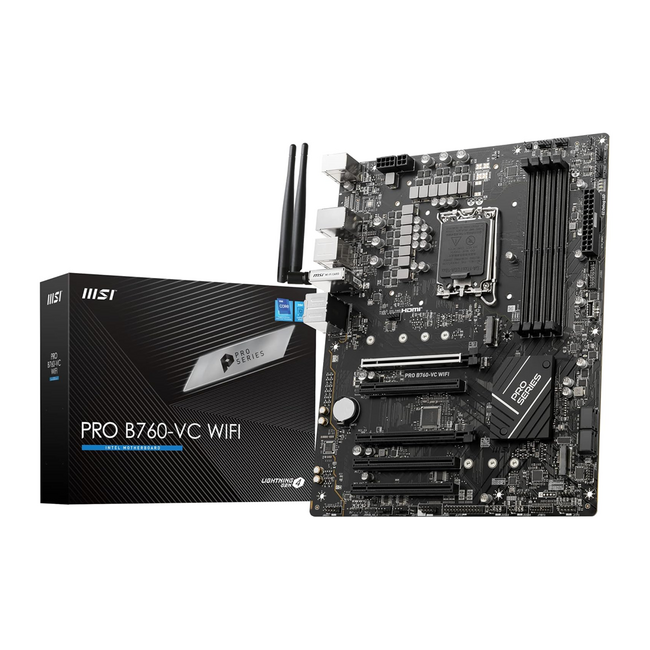

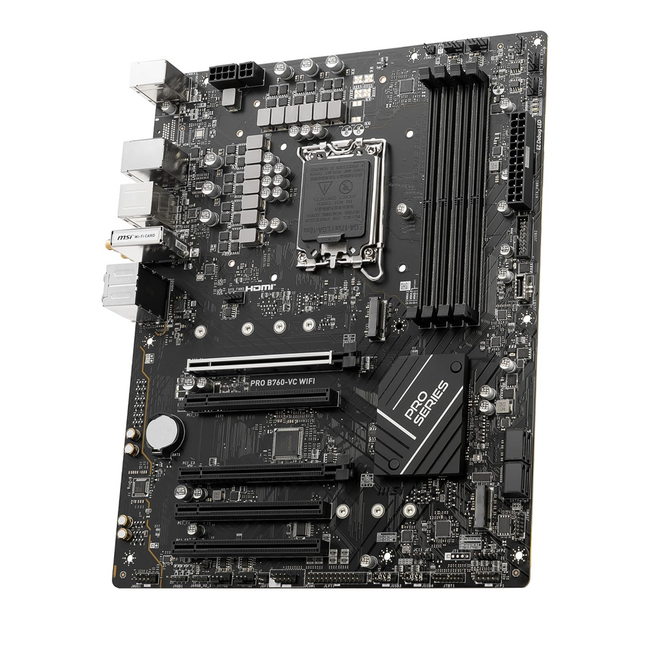

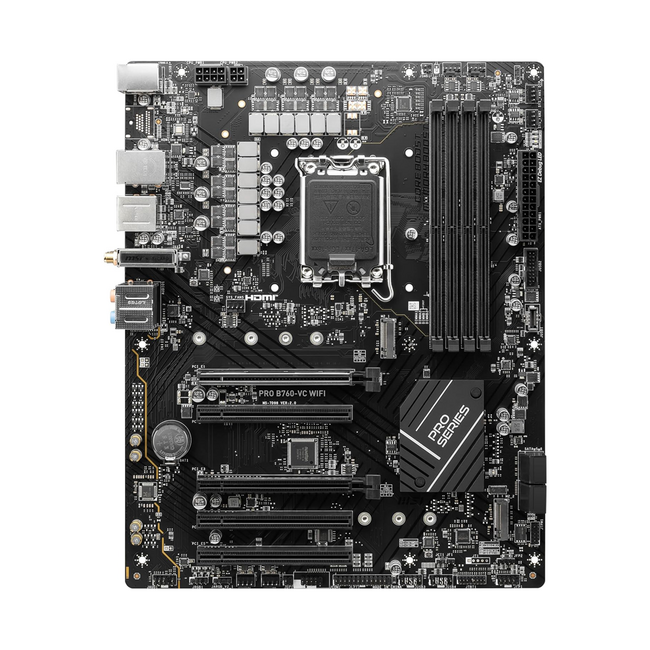

The MSI PRO B760-VC WIFI 7 BULK is an ATX motherboard built around the Intel B760 chipset. Its LGA1700 socket supports 12th, 13th, and 14th Gen Intel Core processors, along with compatible Pentium Gold and Celeron models. MSI product specifications

DDR5 Performance

Four dual-channel DDR5 slots accommodate up to 256GB of non-ECC, unbuffered memory. Support for Intel XMP 3.0 enables compatible modules to operate at speeds up to 7000+MHz when overclocked.

Expansion and Storage

The primary PCIe 4.0 x16 slot features Steel Armor for graphics-card support. Two PCIe 4.0 x4 M.2 slots provide high-speed storage expansion, while four SATA 6Gbps ports accommodate additional drives.

High-Speed Connectivity

WiFi 7, Bluetooth 5.4, and Realtek 2.5Gb Ethernet provide flexible wired and wireless networking. Rear USB connectivity includes 10Gbps Type-A and Type-C ports, with additional headers available for front-panel USB.

Cooling and Diagnostics

Dedicated CPU, pump, and five system-fan headers support flexible cooling configurations. Four EZ Debug LEDs assist with identifying component-related startup problems.

Product Specifications & Identifiers

• Brand: MSI
• Model: PRO B760-VC WIFI 7 BULK
• Chipset: Intel B760
• Form factor: ATX
• Dimensions: 30.5 × 24.4cm (12 × 9.6in)
• CPU socket: LGA1700
• Processor support: 12th, 13th and 14th Gen Intel Core, Pentium Gold and Celeron
• Memory: 4 × DDR5 DIMM slots
• Maximum memory: 256GB
• Maximum memory speed: 7000+MHz (OC)
• Memory features: Dual-channel, Intel XMP 3.0, non-ECC unbuffered
• Primary expansion slot: PCIe 4.0 x16
• Storage: 2 × PCIe 4.0 x4 M.2 and 4 × SATA 6Gbps
• RAID support: RAID 0, 1, 5 and 10 for SATA drives
• Wireless: WiFi 7 and Bluetooth 5.4
• Wired networking: Realtek RTL8125BG 2.5Gb LAN
• Audio: Realtek ALC897 7.1-channel HD Audio
• Rear display outputs: VGA, HDMI 2.1 and DisplayPort 1.4
• Rear USB: 2 × USB 10Gbps Type-A, 1 × USB 10Gbps Type-C and 4 × USB 2.0
• Operating-system support: Windows 10 and Windows 11 64-bit
• WiFi 7 requirement: Windows 11
