AMD AM5 Platform

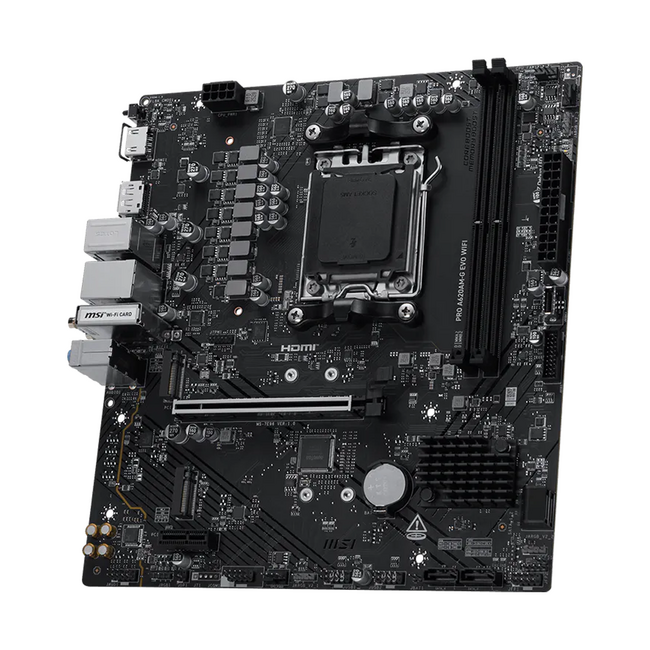

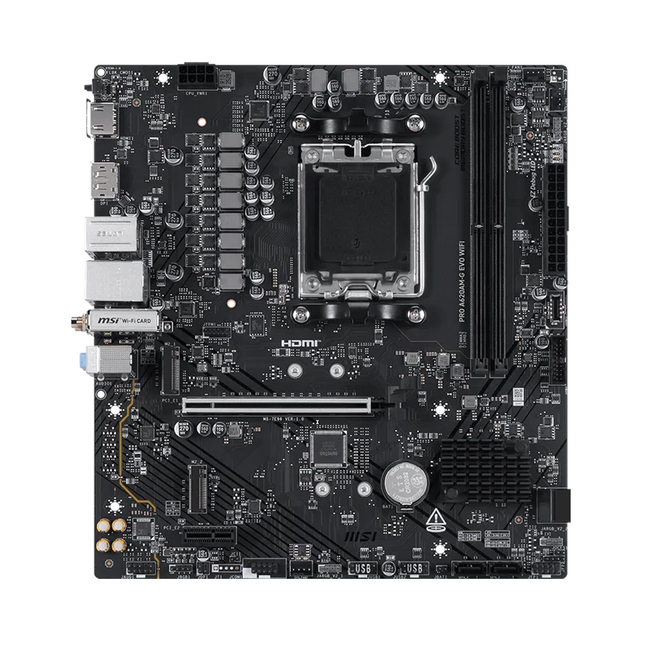

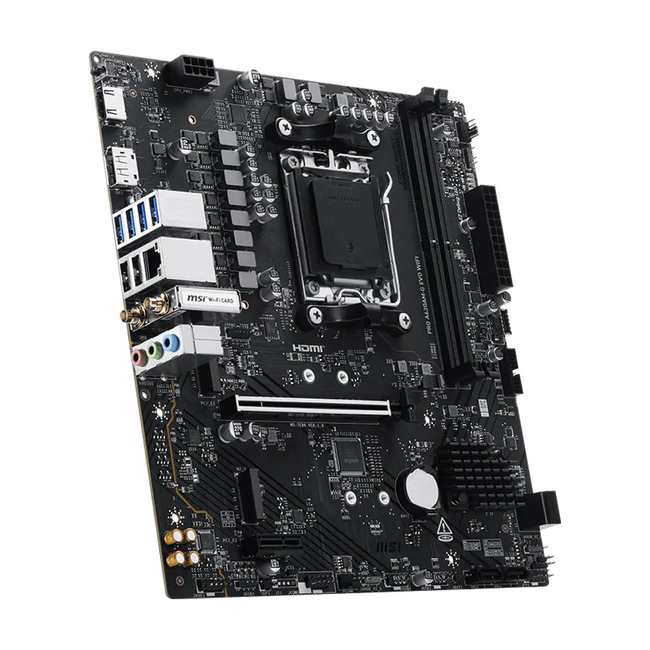

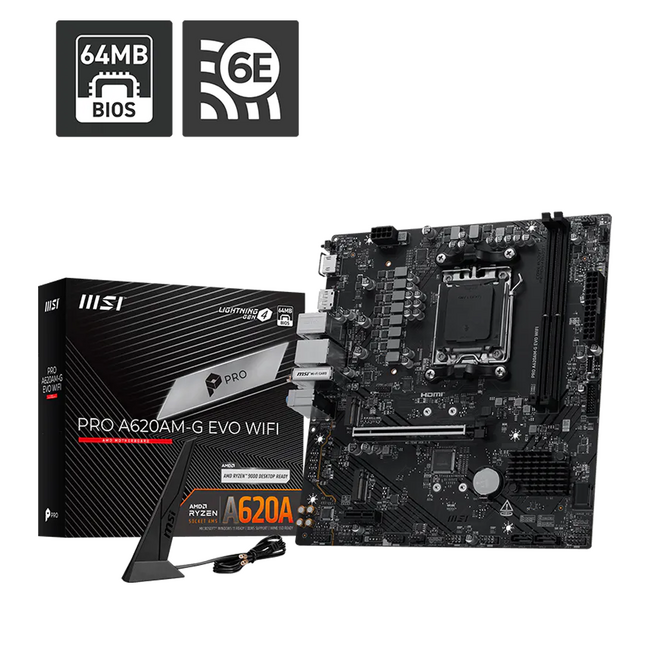

The MSI PRO A620AM-G EVO WIFI is a Micro-ATX motherboard built around the AMD A620A chipset. Its AM5 socket supports AMD Ryzen 7000, 8000 and 9000 Series desktop processors, making it suitable for compact professional, productivity and everyday PC builds.

DDR5 Memory Support

Two DDR5 UDIMM slots accommodate up to 128GB of dual-channel memory. Supported speeds extend up to 7200+ MT/s through overclocking, with AMD EXPO profiles providing a straightforward way to configure compatible performance memory. Available speeds depend on the installed processor and memory configuration.

Expansion and Storage

The reinforced PCIe 4.0 x16 slot supports a discrete graphics card, while an additional PCIe 3.0 x1 slot accommodates an expansion device.

Two M.2 slots support PCIe 4.0 NVMe storage, complemented by four SATA 6Gbps ports for additional drives. RAID 0, RAID 1 and RAID 10 are supported for SATA storage devices.

High-Speed Networking

Integrated Wi-Fi 6E supports the 2.4GHz, 5GHz and 6GHz bands with speeds up to 2.4Gbps where regional regulations and compatible equipment permit. Bluetooth 5.3 connects supported wireless peripherals, while 2.5Gb Ethernet provides a high-speed wired networking option.

Display, Audio and USB Connectivity

HDMI 2.1 and DisplayPort 1.4 outputs support resolutions up to 4K at 60Hz when paired with a processor featuring integrated graphics. The Realtek ALC897 codec provides 7.1-channel high-definition audio.

Rear and internal headers collectively support USB 5Gbps Type-A, front USB 5Gbps Type-C and USB 2.0 connectivity. Dedicated Clear CMOS and Flash BIOS buttons simplify maintenance and firmware updates.

Product Specifications & Identifiers

• Brand: MSI
• Series: PRO
• Model: PRO A620AM-G EVO WIFI
• Product type: Desktop motherboard
• Form factor: Micro-ATX
• Dimensions: 226 × 243.84mm
• CPU socket: AMD AM5
• Chipset: AMD A620A
• Supported processors: AMD Ryzen 9000, 8000 and 7000 Series desktop processors
• Memory slots: 2 × DDR5 UDIMM
• Maximum memory: 128GB
• Memory architecture: Dual-channel
• Maximum memory speed: Up to DDR5-7200+ MT/s overclocked
• Memory profile support: AMD EXPO
• Primary expansion slot: 1 × PCIe 4.0 x16
• Additional expansion slot: 1 × PCIe 3.0 x1
• M.2 storage: 2 × PCIe 4.0 M.2 slots supporting 2260 and 2280 devices
• SATA storage: 4 × SATA 6Gbps
• SATA RAID support: RAID 0, RAID 1 and RAID 10
• Wired networking: Realtek RTL8125D 2.5Gb Ethernet
• Wireless networking: Wi-Fi 6E, up to 2.4Gbps
• Bluetooth: 5.3
• Audio codec: Realtek ALC897
• Audio channels: 7.1-channel high-definition audio
• Display outputs: 1 × HDMI 2.1 and 1 × DisplayPort 1.4
• Maximum display resolution: 4K at 60Hz with a compatible processor

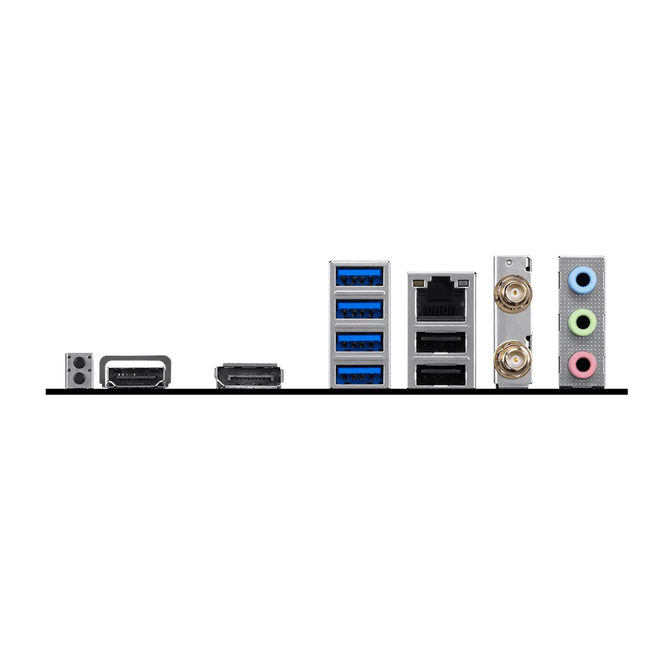

• Rear USB: 4 × USB 5Gbps Type-A and 2 × USB 2.0
• Front USB support: 2 × USB 5Gbps Type-A, 1 × USB 5Gbps Type-C and 4 × USB 2.0
• RGB headers: 3 × addressable RGB Gen 2 and 1 × RGB
• Diagnostic feature: 4 × EZ Debug LEDs
• Rear controls: Clear CMOS and Flash BIOS buttons
• Operating system support: Windows 11 64-bit and Windows 10 64-bit
