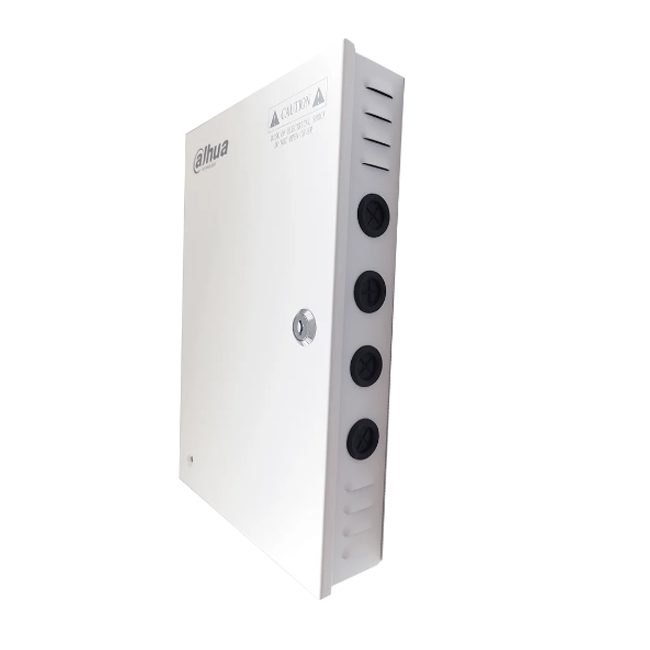

CCTV Distributed Power Supply box
> 19 Channel security camera power supply distribution box with individual LED output indicator and metal case by lock key to prevent unauthorized access.
> Wide voltage input: AC90~264Vac, meet the requirements in di
Read more..
CCTV Distributed Power Supply box
Electrical Specification | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Model | DH-PFM343-19CH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Input Voltage Range | AC90~264V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Outputs | 19 x 12VDC (-3%~+7%) outputs | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. output | 20A, 240W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Protection | 19 replacement fuses, max. per output 3A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Efficiency | 87% | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
No Load Power Consumption | <0.21W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal ON/OFF Power Switch | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Individual LED Output Indicator | Yes | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protection/Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Surge Protected | Line to ground: 4000V Line to line: 2000V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
ESD | Contact discharge: 6000V Air discharge: 8000V | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Temperature | -20℃~+45℃(-4℉~+113℉) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Working Humidity | <90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical Properties | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Weight | 2.52kg(5.56lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension(LxWxH) | 315mmx215mmx53mm (12.4”x8.46”x2.09”) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Wall mount | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Color | White | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Safety Standards | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certification | CE(EN55032, EN55020) FCC(FCC Part 15 Class B, ISED ICES-003 Issue 6) |
CCTV Distributed Power Supply box
> 19 Channel security camera power supply distribution box with..
