Continuous Online Power Protection

The APC Easy UPS On-Line SRV provides 3000VA / 2400W of capacity for servers, networking equipment and other critical electronics. Its online double-conversion topology supplies a pure sine-wave output while isolating connected equipment from common utility-power disturbances. APC Easy UPS SRV3KRARK product information.

Rackmount Installation

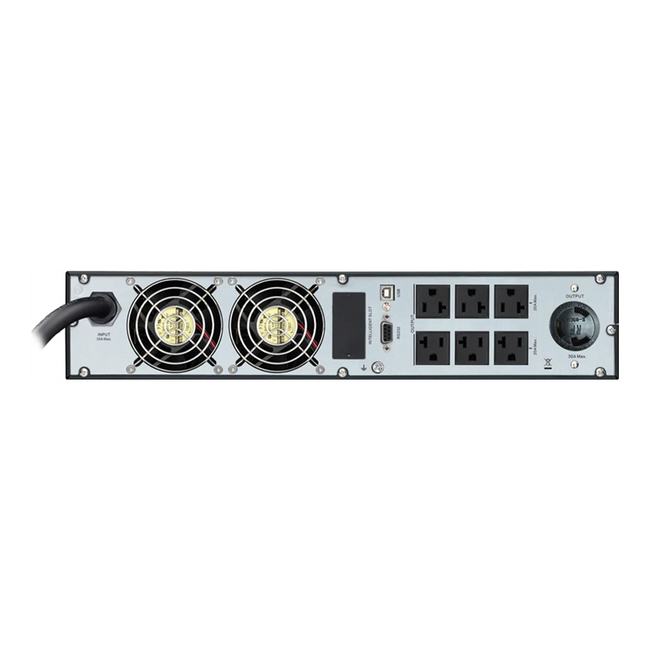

The 2U chassis fits compatible equipment racks, and the supplied rail kit and rackmount brackets support installation. Six NEMA 5-20R outlets and one NEMA L5-30R outlet accommodate multiple protected devices.

Battery Runtime and Charging

The internal sealed lead-acid battery provides approximately four minutes of runtime at full load or 13 minutes at half load. Actual runtime varies with load, battery condition and operating environment. Intelligent temperature-compensated charging helps manage battery performance, with a typical recharge time of four hours.

Monitoring and Management

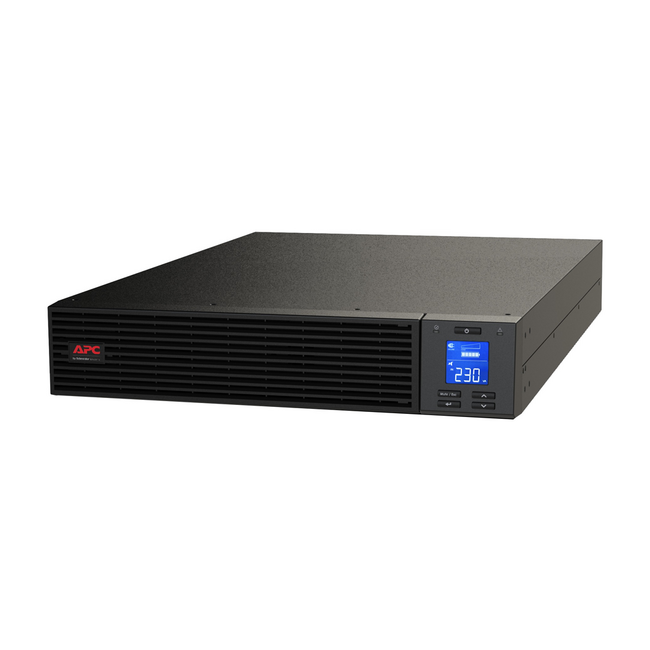

A multifunction LCD provides clear operating and status information. USB and DB-9 RS-232 interfaces support local communication, while an intelligent card slot accommodates compatible optional management accessories. Audible alarms indicate battery operation, low-battery conditions and overloads.

Efficient Operation

ECO mode improves operating efficiency when incoming power conditions are suitable. The UPS also provides 600-joule surge protection for connected equipment.

Included Items

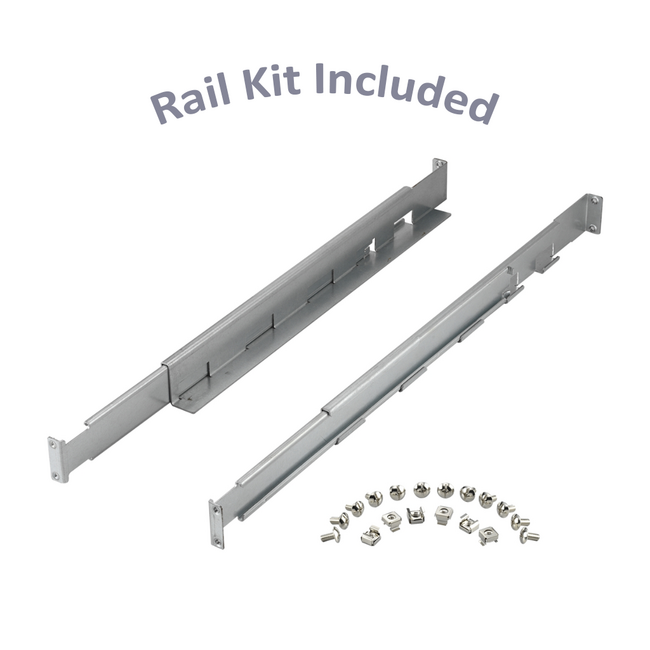

The package includes the APC Easy UPS, rackmount brackets, rack-support rails, a USB cable, an RS-232 configuration cable and a user manual.

Product Specifications & Identifiers

• Brand: APC by Schneider Electric
• Product range: Easy UPS On-Line SRV
• Product type: Online rackmount UPS
• Model/part number: SRV3KRARK
• Topology: Online double conversion
• Rated capacity: 3000VA / 2400W
• Output waveform: Pure sine wave
• Main input voltage: 120V
• Supported input voltages: 110V, 115V and 120V
• Main output voltage: 120V
• Supported output voltages: 110V, 115V and 120V
• Input connection: NEMA L5-30P
• Output connections: 6 × NEMA 5-20R and 1 × NEMA L5-30R
• Rack height: 2U
• Runtime at full load: Approximately 4 minutes
• Runtime at half load: Approximately 13 minutes
• Battery type: Sealed lead-acid
• Battery voltage: 72V
• Typical recharge time: 4 hours
• Typical battery life: 3–5 years
• Replacement battery: APCRBCV202
• Surge-energy rating: 600J
• Control panel: Multifunction LCD
• Communication interfaces: USB and DB-9 RS-232
• Intelligent card slots: 1
• Input-cable length: 1.5m
• Dimensions: 86 × 437 × 632mm
• Net weight: 27.6kg
• Colour: Black
• Included mounting hardware: Rackmount brackets and rail kit
• Warranty: Two years
