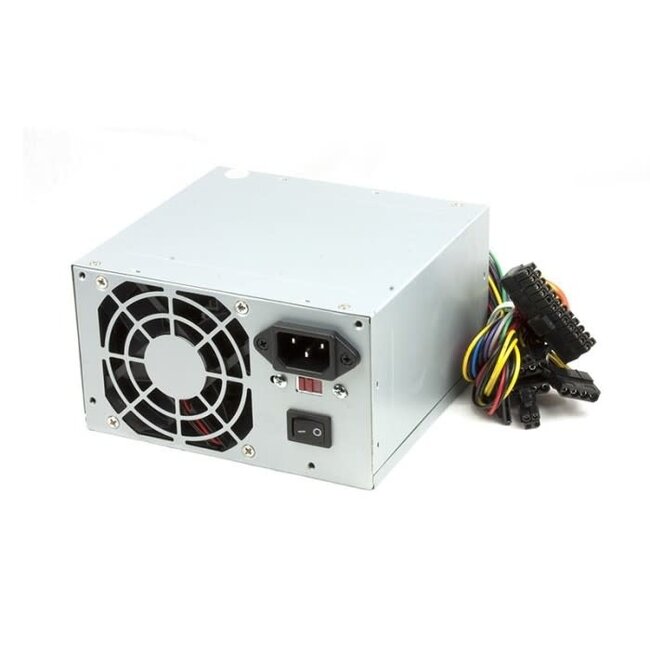

Highlights

• Efficient PSU with temperature control fan
• ATX 12V compliant for all kinds of CPU and mainboard
• Selectable 115VAC and 230VAC operation

Specifications

• Connectors:
  • 20+4PIN cable, P4
  • 3x Molex (IDE) + 1 x SATA
  • 1x FDD

• Power  : 700W reference
• ATX12V version: V2.2
• MTFB: 30000 hours of continuous operation at 25 DC ,  Full load, 75% confidence limit and normal line
• Safety protection: Over Voltage Protection/ Over Current Protection/ Over Power Protection/ Short-circuit protection
• Operating temperature (°C): 0 to +40°C
• Storage temperature (°C): -20 to +85 °C
• Operating humidity : 20% to 80% RH
• Storage humidity: 10% to 90% RH

AC input

• Input voltage (VAC): 115VAC or 230VAC (slectable switch)
• Input current (A): 5A RMS MAX. for 115VAC, and 3A RMS MAX. for 230VAC
• Input frequency (Hz). 47-63Hz

• +12V (A): 45A
• '+3.3V (A): 28A
• +5V (A): 38A
• +5Vsb (A): 2A
• -12V (A): 0.8A

• Fan included: 1
• Fan size (mm): 80mm
• Fan speed (RPM): 2400RPM

• Package content: PSU and power cord
• Cable length: 3.9ft
• Dimensions: 5.9x 3.9 x 3.3in
• Weight: 1.54lb
